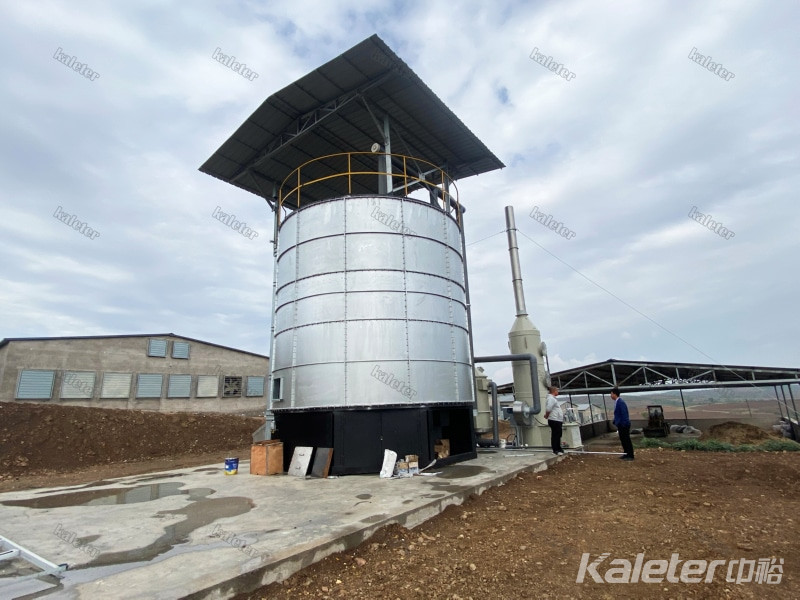

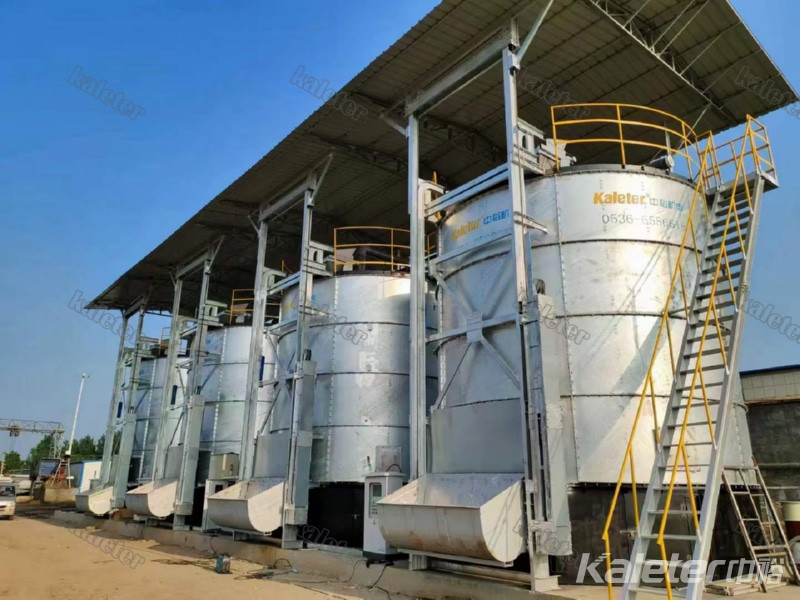

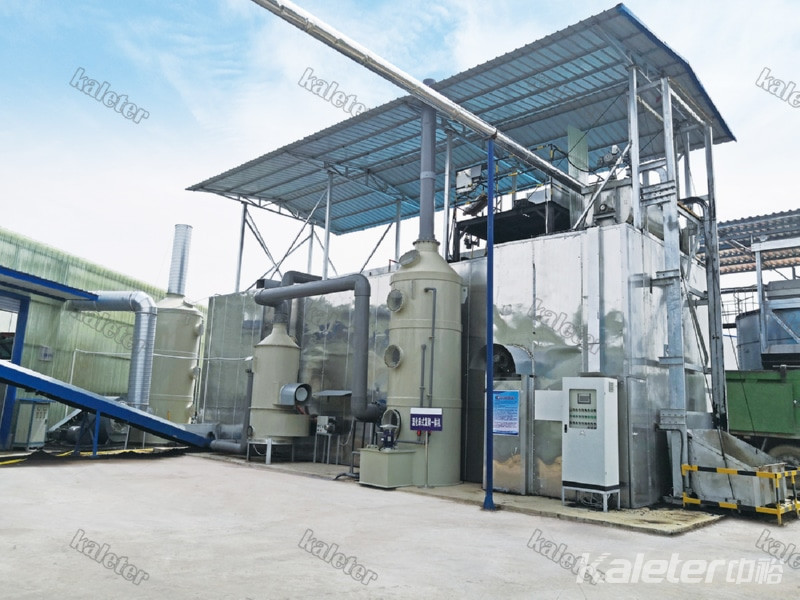

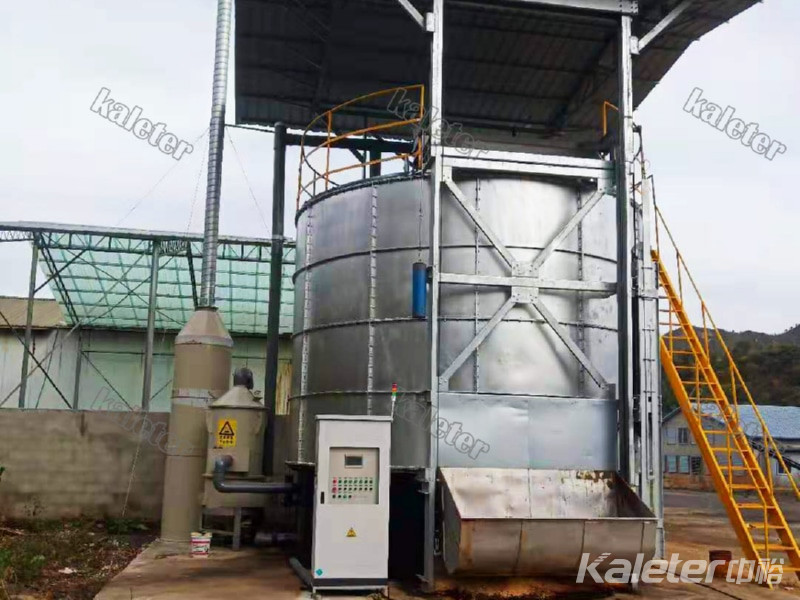

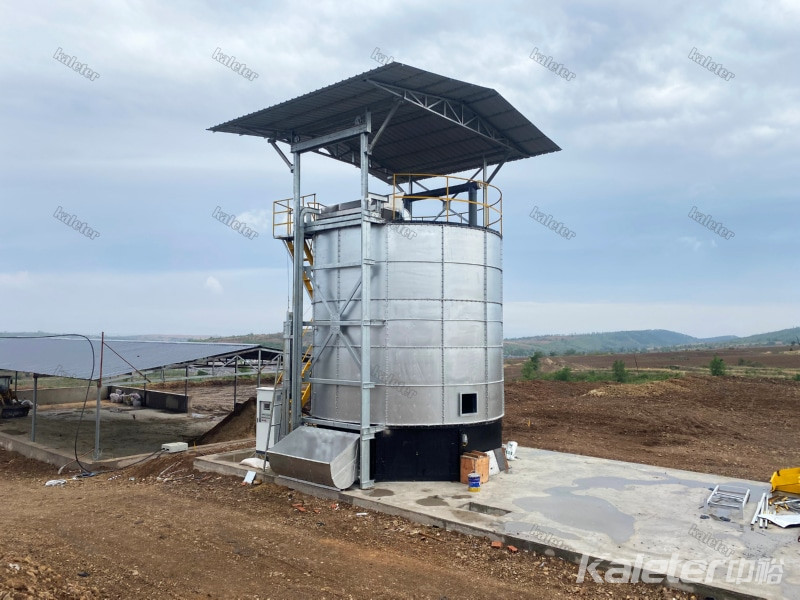

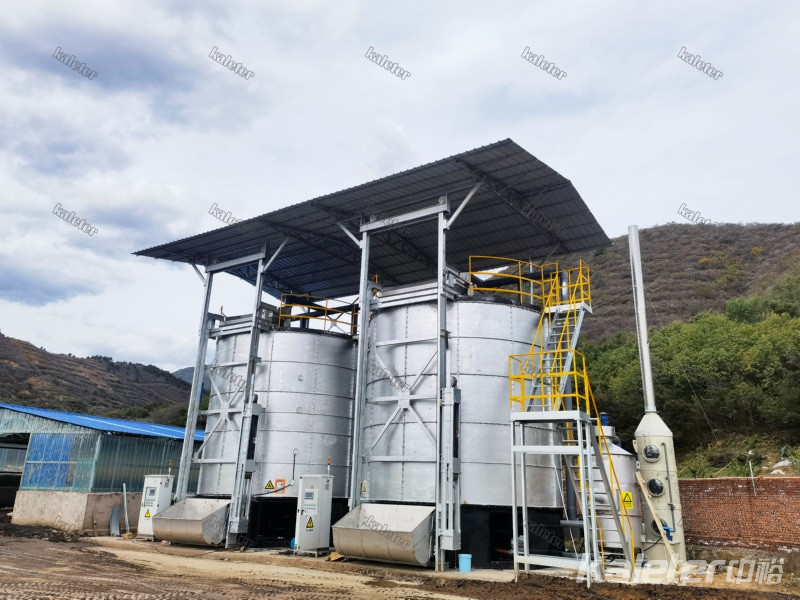

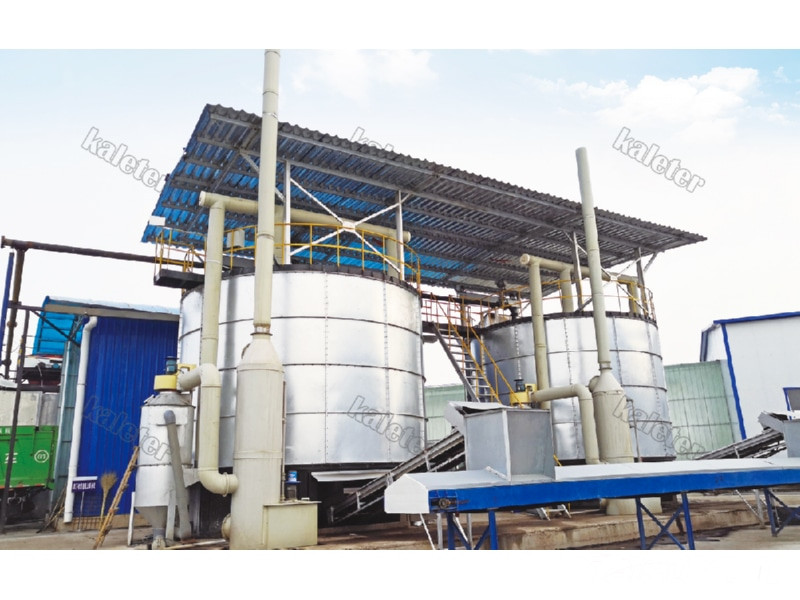

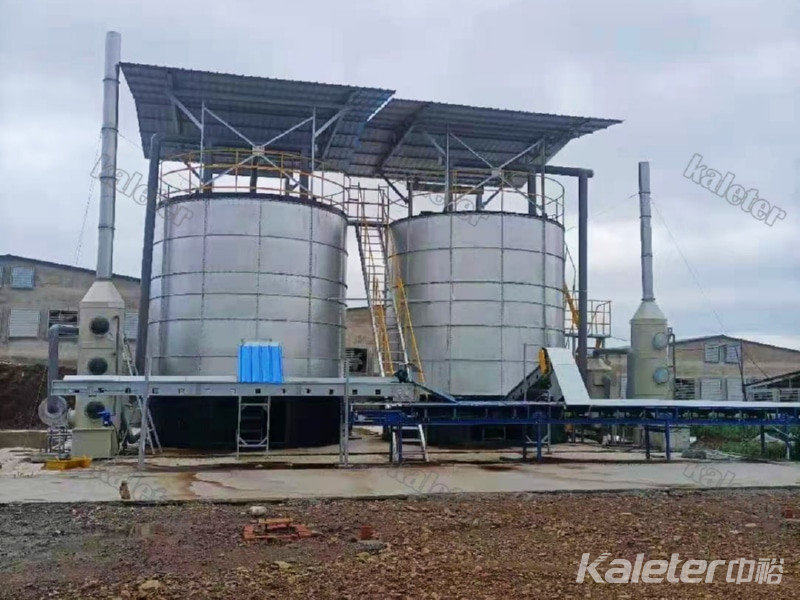

Manure fermentation tank

The aerobic manure fermentation tank is a highly efficient and environmentally friendly treatment device. It utilizes aerobic microorganisms to rapidly decompose manure under constant temperature and aeration conditions, converting it into organic fertilizer. It adopts intelligent temperature control, automatic stirring and ventilation systems to ensure efficient fermentation and reduce odor emissions. It is applicable to places such as breeding farms and organic fertilizer factories, achieving harmless, reduced and resourceful utilization of manure and sewage. It is energy-saving and environmentally friendly, with low operating costs.

Composition and functions of fermentation tank equipment

Equipment composition and functions: The tower-type manure treatment equipment mainly consists of a fermentation chamber, a hydraulic main shaft transmission system, a feeding and lifting system, an automatic discharging system, a high-pressure air supply system, an odor removal system, and an intelligent control system, etc.

Fermentation tank room: Stores organic materials and completes the fermentation process;

Stirrer: Evenly stir the materials in the fermentation tank to ensure uniform fermentation and achieve 100% maturity.

Ventilation pump: The high-pressure vortex air pump fully supplies the oxygen needed for the fermentation process in the fermentation tank.

Hydraulic drive: High transmission power, low speed, smooth operation, overload protection capability, and flexible transmission layout.

Heat exchange device: The heat exchange device can fully utilize the high-temperature gas naturally generated inside the tank to preliminarily heat and increase the temperature of the inhaled air, improving energy utilization efficiency, ensuring the fermentation effect, reducing the power consumption of the equipment, and achieving the goal of energy conservation and consumption reduction.

Automatic tipping elevator: It mechanically lifts the fermentation materials and then feeds them into the fermentation tank.

Discharge device: Discharge the organic fertilizer that has been fully fermented from the fermentation tank.

Features of the fermentation tank equipment

Tank sealing: The tank is fully sealed, ensuring that the fermentation process is not affected by the temperature and humidity of the natural environment. This enables the production of organic fertilizer to meet industrial production standards, prevents the leakage of waste gas generated during fermentation, and eliminates secondary pollution.
Insulation treatment: The interior of the tank is made of high-performance insulation materials, which are less affected by the outside world and ensure fermentation throughout the year.
Long service life: The inner walls of the tank are all made of 304 stainless steel, which is anti-corrosive.
Land conservation: The equipment adopts a three-dimensional design, saving land usage area.
Good material maturity: After being fermented by equipment, livestock and poultry waste (with a moisture content of less than 30%) does not require secondary fermentation and can be directly applied to farmland as organic fertilizer.
Continuous production: A certain amount of livestock and poultry waste is input every day, and organic fertilizer is produced daily.
